New Product: 3 Phase 400Hz Aerospace/Aircraft Motor Drive

New from Invention House: 3PD-25230 400Hz capable Aerospace Drive 400 hz aircraft variable frequency drive

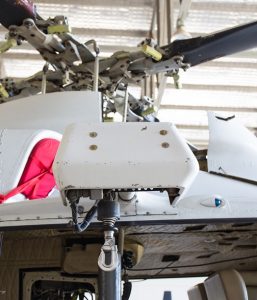

Currently tested in heavy lift environments exceeding 10,000 lbs, Invention House’s new 400Hz air-crafted rated drive is ideal for manufacturers seeking a custom variable frequency drive to solve aircraft electric motor control needs. The Invention House 3 Phase Aerospace/Aircraft electrical motor drive is capable of 50/60/400Hz output. This ruggedized drive is designed to withstand temperatures from -40C to +55C and up to 40g shock and 2grms vibration, making it the perfect drive for on-aircraft operations, including helicopter and fixed-wing aircraft.   Our new aircraft-rated drive weighs in at 10lbs(4.5kg) and is significantly lighter than commercial drives of the same rating which generally weigh 30lbs or more, thus creating space and weight savings for improved aircraft operations.

Download the brochure: IH Cutsheet 3PD-25230

Ideal applications for the 3 Phase/400Hz custom motor drive include:

  • Hydraulic Pumps400 hz drive for aircraft hoist heavy lifting
  • Winches
  • Fans
  • Blowers
  • Other 3 Phase On-Board Motor-Driven Electrical Devices

Full Specs:

Hydraulic pumps, Winches
 Fans, Blowers, Compressors
 3-Phase Input – 3-Phase Output
 230VAC – 65Amps rms (20HP)
 50/60/400Hz Output
 -40C to +55C Operation
 40g shock, 2grms vibration

If you are seeking a 400 Hz drive for an aircraft application, contact Invention House today!
