American-Made 3-Phase VFD
American-made 3-phase VFDs that comply with strict military compliance standards.
Variable Frequency Drives for 3-Phase Motors That Meet Military Specifications
It can be a challenge to find the ideal variable frequency drive (VFD) to power military equipment. Off-the-shelf options lack the high-performance capabilities to maintain power in rugged environments and the durability to withstand difficult travel conditions. A quality 3-phase VFD should provide the necessary motor speed control while withstanding harsh elements, including temperature extremes, shock, and particulates.
Invention House is a military-approved small-business contractor (Cage #58XJ1) with over two decades of experience designing and building VFD motors that meet strict, military-grade specifications. Our drives have been used in cooling fans, blower motors, radar systems, and HVAC equipment and meet engineering capabilities for:
- Electronic design
- Power circuit design
- Electronic assembly
- PCB layout
- Embedded software
- Human interface
- Failure analysis
- MIL-STD-810 compliance for environmental engineering considerations and laboratory tests
- MIL-STD-461 compliance for electromagnetic interference characteristics requirements for equipment
- MIL-STD-464 compliance for interface electromagnetic environmental effects requirements for systems
We understand that testing standard power drive solutions can be a frustrating experience, so we provide equipment that offers the following advantages:
Customization
Sourcing motor drives from major manufacturers can be stressful because their production standards often limit customizable options. Invention House is a small and independent business, enabling us to design 3-phase VFDs to suit your requirements.
Durability
As a small and independent company, Invention House can customize our variable frequency drive for 3-phase motors to meet your needs. Contact us today to learn more about the advantages of our products.
3 Phase Motor Drives We Offer
| Model | Input Voltage | Output Freq. | Output Current | Features | Availability |
|---|---|---|---|---|---|
| 3PD-32010GP | 200- 253V | 5-120Hz | 10A | General Purpose | Yes |
| 3PD-3230F | 200- 253V | 35-88hz | 10A | Military | Proprietary |
| 3PD-3230C | 200- 253V | 35-88hz | 10A | Military | Proprietary |
IH Cutsheet 3PD-3230
IH Cutsheet 3PD-60096
Power Your Motors With Invention House’s American-Made 3-Phase VFDs
As a small and independent company, Invention House can customize our variable frequency drive for 3-phase motors to meet your needs. Contact us today to start custom building your motor drive today.
Specifications of Invention House’s Military-Grade 3-Phase VFD

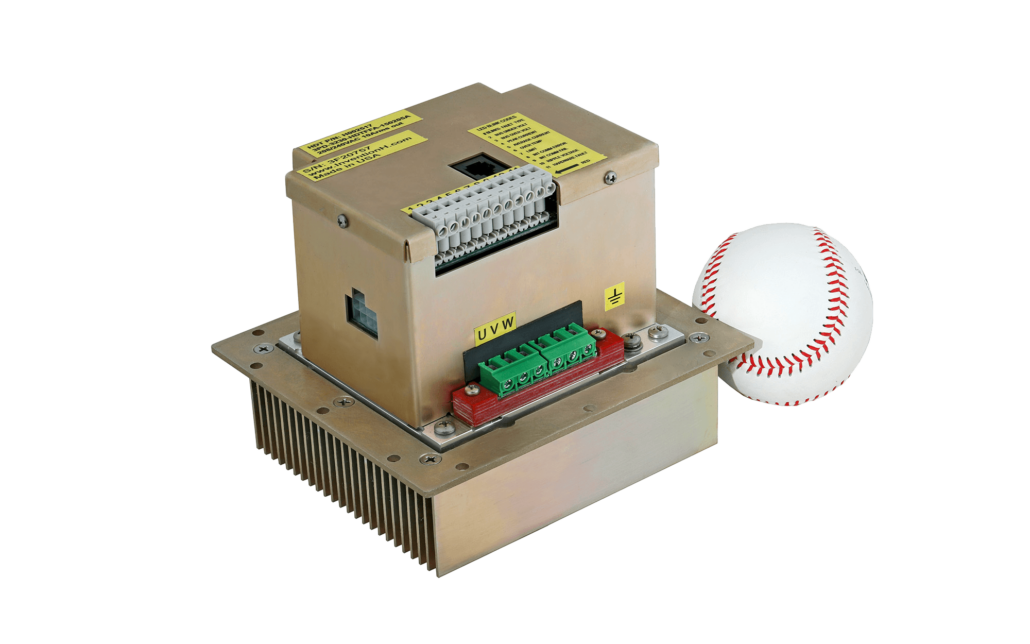

Our 3-phase VFD can be customized to meet a variety of demanding applications. Chasis format can be box-type as shown above or other configurations based on space requirements. Other features of this drive include:
- Three- or single-phase in and three-phase out
- 50/60/400Hz output
- -40℃ to 55℃ temperature operating range
- Finishes: Alodine or Anodized
- Withstands 40g shock
- Withstands 2grms vibration
- Low airflow compatible
Invention House’s 3-phase VFD can be used indoors and outdoors with appropriate enclosures and provides the following main control functions:
- Speed control
- Run in current limit
- Upper lower limits for frequency reference
- Fault restart
Invention House: A Leading Provider of 3-Phase VFDs and More
At Invention House, we understand the critical role high-quality VFDs play in various commercial and military processes. That’s why we aim to build reliable, efficient, and cost-effective motor control products for our customers. Our team has been creating and troubleshooting VFDs for more than two decades, and we leverage our knowledge to develop equipment that meets the needs of our clients.
Along with our 3-phase motor drives, we offer 400 Hz VFDs for the aerospace industry and single-phase drives for manufacturing applications. We also provide repair services to help enhance product efficiency. Partnering with Invention House provides you with the knowledge that you’re receiving durable equipment customized to suit your processes.
